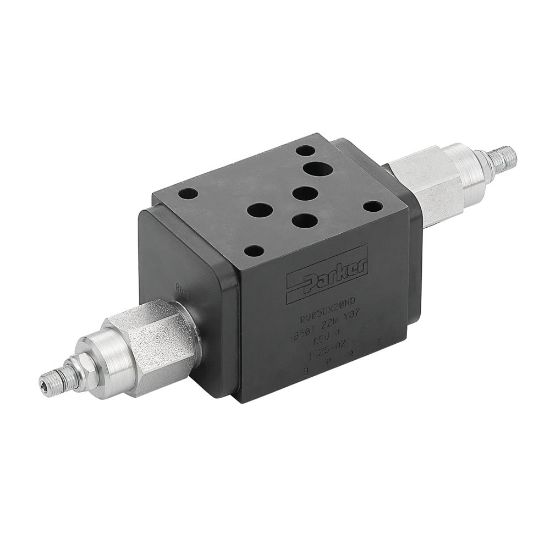

Picture of Pressure Relief Sandwich Valve – RV Series - RV05AT20ND

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Relief Sandwich Valve – RV Series - RV05AT20ND

Parkers RV series direct acting, pressure relief valves are designed to limit pressure in various parts of a hydraulic circuit.
Availability:
Backordered
SKU RV05AT20ND
$1,323.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASizeNFPA D05; CETOP 5; NG10
Port ConnectionA to TPressure Range (psi)1000 to 6000
Product StylePressure Relief ValveDivisionHydraulic Valve Systems Division
Minimum Operating Temperature-4 °FMaximum Flow Rate50 Gal/min
Body MaterialDuctile IronMediaOil
Maximum Operating Temperature+176 °FWeight2.2 kg
Mounting TypeSubplateMaximum Operating Pressure5000 psi
Actuation TypeHydraulic PressureAllowable Circuit Leakage10 DPM
Seal MaterialNitrileFilter Efficiency RatingISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
