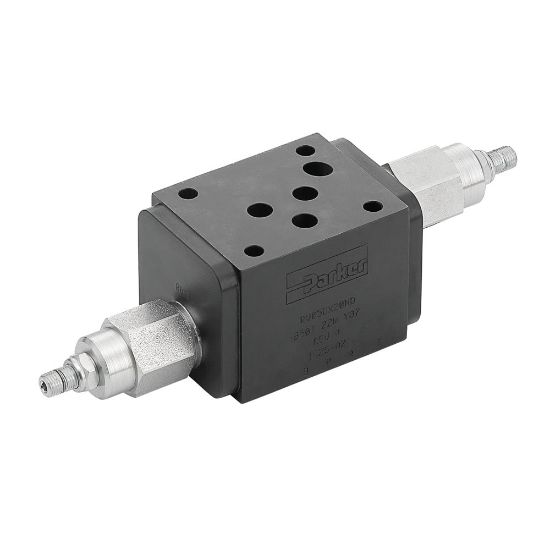

Picture of Pressure Relief Sandwich Valve – RV Series - RV05DX10NA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Relief Sandwich Valve – RV Series - RV05DX10NA

Parkers RV series direct acting, pressure relief valves are designed to limit pressure in various parts of a hydraulic circuit.
Availability:
Backordered
SKU RV05DX10NA
$1,470.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPressure Range (psi)500 to 3000
SizeNFPA D05; CETOP 5; NG10Port ConnectionA to B and B to A
Body MaterialAluminumMinimum Operating Temperature-4 °F
Weight1.4 kgMaximum Flow Rate50 Gal/min
MediaOilMaximum Operating Temperature+176 °F
Actuation TypeHydraulic PressureAllowable Circuit Leakage10 DPM
Mounting TypeSubplateSeal MaterialNitrile
Filter Efficiency RatingISO 4406 (1999); 18/16/13 (meet NAS 1638:7)DivisionHydraulic Valve Systems Division
Product StylePressure Relief ValveMaximum Operating Pressure3000 psi
