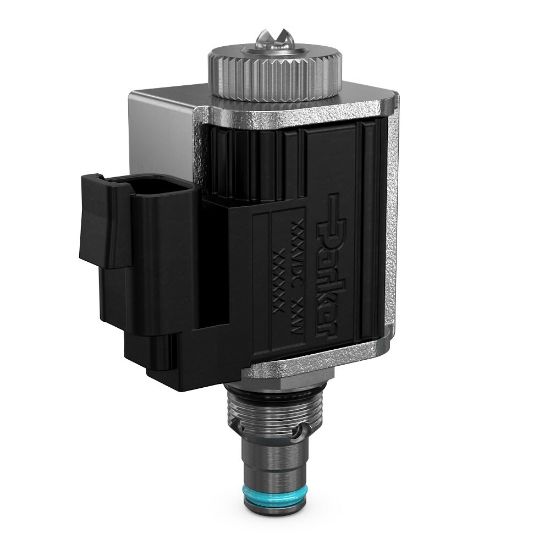

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AP02B2YR07ANL - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU AP02B2YR07ANL

$182.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	1.4 GAL/MIN, 5.3 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Maximum Relief Pressure	1000 PSI, 70 BAR	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Flow Direction	Nose to Side (1-2)
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Temperature	121 °C	Maximum Operating Pressure	70 bar
Weight	0.19 lb	Maximum Pressure Setting	n/a
Mounting Type	Screw-in Cartridge	Cavity Size	C08-2
Leak Rate	n/a	Maximum Inlet Pressure Rating	5000 psi
Function	Proportional Pressure Relief	Coil Type	5/8" Super Coil High Watt (CAP)
Flow Rate	5.3 L/min	Frequency	100 to 400 Hz
Hysteresis	< 10 %	Configuration	Decreasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Cracking Pressure	0.07 bar
Maximum Flow Rate	1.4 Gal/min	Power Consumption	28 W
Installation Torque	30 Nm	Pressure Control Range	n/a
Maximum Relief Pressure	70 bar	Coil Nut Tightening Torque	Finger Tight
