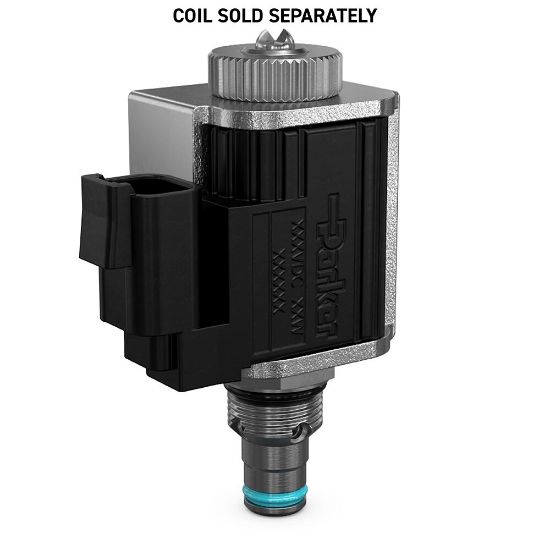

AP02B2YR07AVL - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 264 days
Partner Available:	Backordered

SKU AP02B2YR07AVL

$182.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	1.4 GAL/MIN, 5.3 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Maximum Relief Pressure	1000 PSI, 70 BAR	Maximum Operating Pressure	1000 psi
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	For Fluid Type	Mineral-based Hydraulic Fluids
Flow Direction	Nose to Side (1-2)	Valve Material	Hardened Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Temperature	121 °C
Weight	0.09 kg	Maximum Pressure Setting	n/a
Mounting Type	Screw-in Cartridge	Cavity Size	C08-2
Leak Rate	10	Maximum Inlet Pressure Rating	350 bar
Function	Proportional Pressure Relief	Coil Type	5/8" Super Coil High Watt (CAP)
Flow Rate	5.3 L/min	Frequency	100 to 400 Hz
Hysteresis	< 10 %	Configuration	Decreasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Cracking Pressure	1 psi
Maximum Flow Rate	5.3 L/min	Power Consumption	28 W
Installation Torque	22 lb-ft	Pressure Control Range	n/a
Maximum Relief Pressure	70 bar	Coil Nut Tightening Torque	Finger Tight
