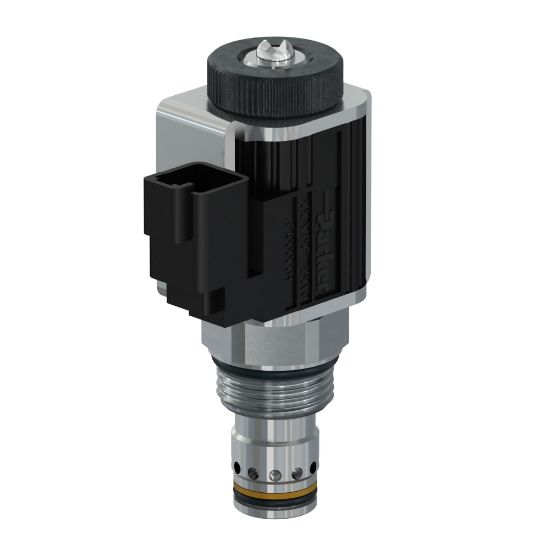

AP04G2YR10CV - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 264 days
Partner Available:	Backordered

SKU AP04G2YR10CV

$208.45/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	25 GAL/MIN, 95 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Maximum Relief Pressure	1000 PSI, 70 BAR	Actuation Type	Electrical
Maximum Operating Temperature	204 °C	Maximum Operating Pressure	1500 psi
Seal Material	Fluorocarbon	Body Material	n/a
For Fluid Type	Synthetic Hydraulic Fluids	Weight	0.14 kg
Leak Rate	5	Flow Direction	Nose to Side (1-2)
Valve Material	Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Flow Rate	25 Gal/min	Maximum Flow Rate	25 Gal/min
Maximum Pressure Setting	n/a	Mounting Type	Screw-in Cartridge
Cavity Size	C10-2	Maximum Inlet Pressure Rating	350 bar
Cracking Pressure	n/a	Function	Proportional Pressure Relief
Coil Type	1/2" Super Coil High Watt (CCP)	Frequency	100 to 400 Hz
Hysteresis	< 7 %	Configuration	Decreasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Power Consumption	19 W
Installation Torque	34 Nm	Pressure Control Range	n/a
Maximum Relief Pressure	103 bar	Coil Nut Tightening Torque	3 lb-ft
