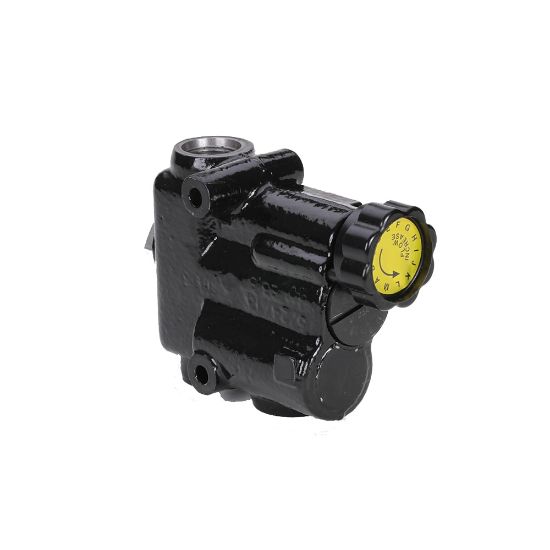

Picture of Priority Flow Control - DC25 Series - DC25A-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Priority Flow Control - DC25 Series - DC25A-12

Parker’s DC25A Adjustable Flow Divider is designed for providing a 1-26 GPM controlled flow source. It is typically applied for applications where frequent adjustments to the controlled flow rate are required.
Availability:
Backordered
SKU DC25A-12
$568.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort SizeSAE-12
Minimum Operating Pressure70Maximum Operating Pressure3000
Connection TypeSAEMaximum Operating Pressure3000 psi
FunctionFlow ControlDivisionHydraulic Valve Systems Division
ConfigurationInlineMaximum Flow Rate30 Gal/min
Weight8 lbBody MaterialHigh Strength Cast Iron
Maximum Operating Temperature+200 °FProduct StylePriority Flow Control
Flow RateAdjustable Gal/minMinimum Operating Temperature-40 °F
Connection Size#12Seal MaterialNitrile
Actuation TypeManual
