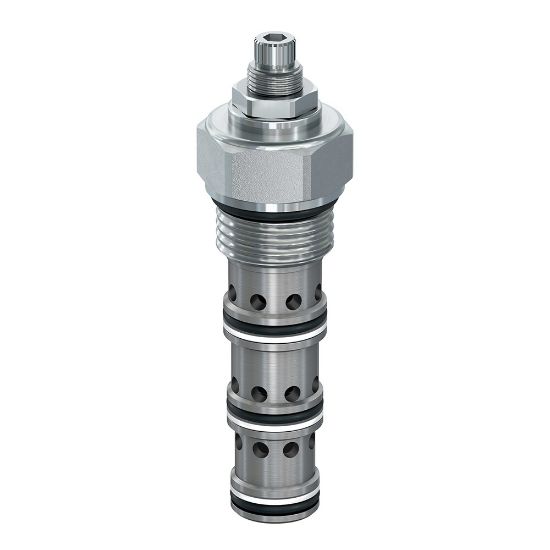

Picture of Priority Pressure Compensators - FCPH121FV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Priority Pressure Compensators - FCPH121FV

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).
Availability:
Backordered
SKU FCPH121FV
$245.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
Maximum Priority Flow20 GAL/MIN, 75 L/MINMaximum Flow Rate25 GAL/MIN, 95 L/MIN
Pressure Differential160 PSI, 11 BARMaximum Flow Rate25 Gal/min
For Fluid TypeMineral-based or synthetic hydraulic fluidsActuation TypePressure Compensation
Flow Rate AccuracyN/APressure Differential11 bar
Maximum Operating Pressure380 barBody Materialn/a
Maximum Inlet Pressure Rating380 barFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
FunctionPriority Pressure CompensatorsMinimum Operating Temperature-15 °F
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)DivisionHydraulic Systems Division
Valve MaterialAll parts steel. All operating parts hardened steelOperating Temperature-15 to +400 °F
Seal MaterialFluorocarbonInstallation Torque21 lb-ft
Cavity SizeC12-4Maximum Priority Flow20 Gal/min
Weight0.28 kgFlow Rate95 L/min
Adjustment MechanismFixedMaximum Operating Temperature+204 °C
DivisionHydraulic Cartridge Systems Division
