PRM6PA25KVG

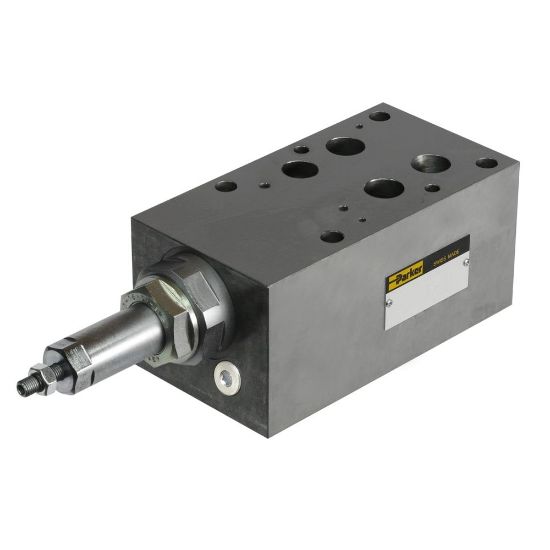

Parker PRM6PA25KVG | Pressure Reducing Valve | Port Connection NG25/CETOP 08 | Max. Operating Pressure 250 Bar | Pressure Control Range 10 to 250 Bar

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU PRM6PA25KVG

$1,760.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Parker pilot operated pressure reducing valves series PRM in size NG16 / CETOP 07 and NG25 / CETOP 08 ensure a long service life due to valve bodies manufactured from steel. The sandwich design enables an easy configuration of stack systems. The piloting results in a flat p/Q performance curve.

The reducing function is located in port P. The pressure reduction for the desired connecting port is achieved by internal connections of the pilot and drain lines with the corresponding channels.

Features:

Valve bodies are made of steel - extra strength and durability
Internal hardened steel components - provide longer service life
Wide pressure range - makes selection easy
Short delivery time for most versions - no warehousing necessary
Piloting results in a flat p/Q performance curve
The control pressure range can be set by hexagon socket screw (PRM4), by knob (PRM6)
Pressure gauge/measuring connections are available in the valve body

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Operating Pressure	250 Bar
Port Connection	NG25/CETOP 08	Function	Reduction In Port P
Parker Division	Industrial System	Pressure Control Range	10 to 250 Bar
Parker Group	Hydraulic	Gauge Port Connection	G 1/4
Pressure Adjustment Control Type	Turning Knob
