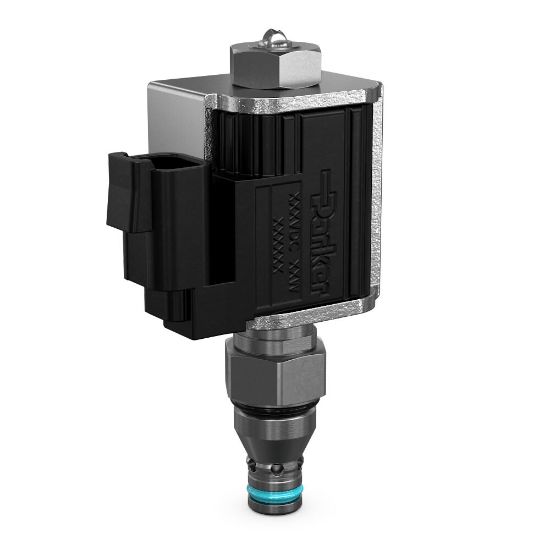

Proportional Poppet Valves - FAP081C

Name: Proportional Poppet Valves - FAP081C
SKU: FAP081C

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAP081C

$320.54

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Maximum Flow Rate	7 GAL/MIN, 27 L/MIN
Actuation Type	Electrical	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Maximum Operating Temperature	+200 °F	Maximum Operating Pressure	210 bar
Weight	0.17 kg	Override Functionality	n/a
Cavity Size	C08-2	Maximum Inlet Pressure Rating	3000 psi
Seal Material	D-Ring (Standard)	Installation Torque	30 Nm
Configuration	Normally Closed	Flow Direction	Side to Nose (2 - 1)
Function	Proportional Flow Control/Regulator	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Frequency	100-400 Hz	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Variation of Closing Point	N/A
Hysteresis	< 15%	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Operating Temperature	-37 to +93 °C	Flow Rate	7 Gal/min
Maximum Flow Rate	7 Gal/min	Coil Type	5/8" Super Coil Low Watt (CAS)
Power Consumption	18 W	Coil Nut Tightening Torque	1.4 Nm
Variation of Opening Point	20-25% of Input Signal	Minimum Pressure Differential	21 bar
