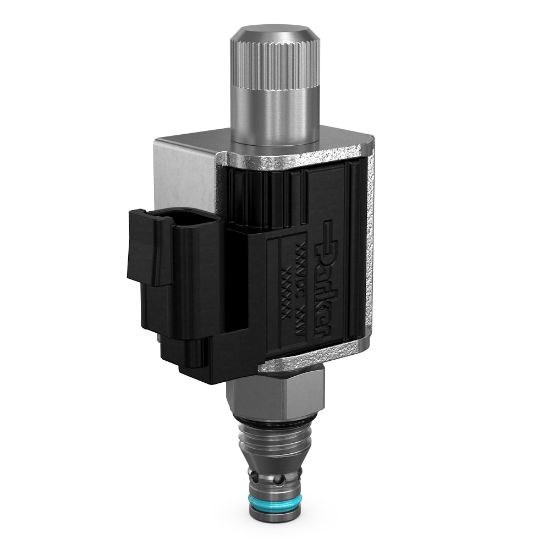

Picture of Proportional Poppet Valves - FAP081NV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Proportional Poppet Valves - FAP081NV

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).
Availability:
Backordered
SKU FAP081NV
$373.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
ConfigurationNormally OpenMaximum Flow Rate10.5 GAL/MIN, 40 L/MIN
Actuation TypeElectricalSeal MaterialFluorocarbon
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-15 °FMaximum Operating Pressure210 bar
Override Functionalityn/aCavity SizeC08-2
Maximum Inlet Pressure Rating3000 psiMaximum Flow Rate40 L/min
Installation Torque30 NmConfigurationNormally Open
Flow DirectionSide to Nose (2 - 1)Maximum Operating Temperature+400 °F
FunctionProportional Flow Control/RegulatorFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Frequency100-400 HzFor Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelOperating Temperature-15 to +400 °F
Variation of Opening PointN/AHysteresis< 15%
Leak Rate5 @ 3000 PSI (210 BAR) drops/minFlow Rate10.5 Gal/min
Weight0.22 kgCoil Type5/8" Super Coil Low Watt (CAS)
Power Consumption18 WCoil Nut Tightening Torque1.4 Nm
Variation of Closing Point60-65% of Input SignalMinimum Pressure Differential21 bar
