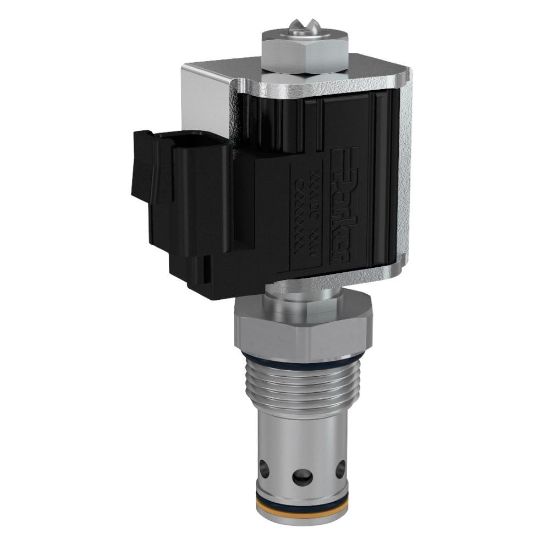

Proportional Poppet Valves - FAP121CV

Name: Proportional Poppet Valves - FAP121CV
SKU: FAP121CV

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAP121CV

$406.55

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Flow Rate	21.5 GAL/MIN, 81.5 L/MIN
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	210 bar
Weight	0.65 lb	Override Functionality	n/a
Maximum Inlet Pressure Rating	3000 psi	Cavity Size	C12-2F
Configuration	Normally Closed	Flow Direction	Side to Nose (2 - 1)
Maximum Operating Temperature	+400 °F	Function	Proportional Flow Control/Regulator
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Frequency	100-400 Hz
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Variation of Closing Point	N/A
Hysteresis	< 15%	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Installation Torque	74 Nm	Flow Rate	21.5 Gal/min
Maximum Flow Rate	21.5 Gal/min	Coil Type	5/8" Super Coil Low Watt (CAS)
Power Consumption	18 W	Coil Nut Tightening Torque	1.4 Nm
Variation of Opening Point	20-25% of Input Signal	Minimum Pressure Differential	300 psi
