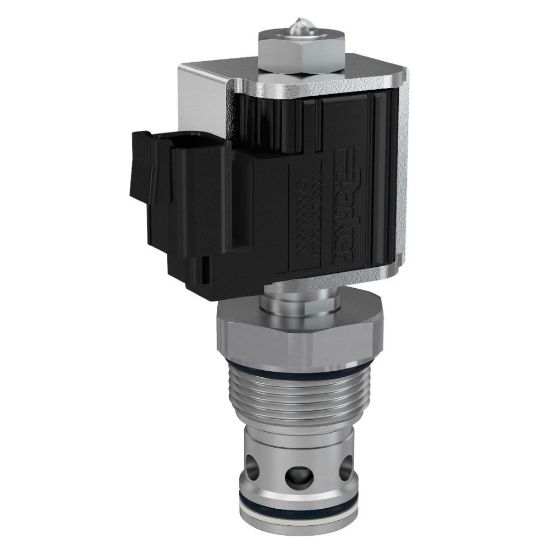

FAP161CN - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP161CN

$443.92/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Flow Rate	28 GAL/MIN, 106 L/MIN
Actuation Type	Electrical	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Override Functionality	n/a	Maximum Inlet Pressure Rating	3000 psi
Cavity Size	C16-2	Flow Rate	106 L/min
Configuration	Normally Closed	Flow Direction	Side to Nose (2 - 1)
Maximum Operating Temperature	+121 °C	Function	Proportional Flow Control/Regulator
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Frequency	100-400 Hz
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Variation of Closing Point	N/A	Hysteresis	< 15%
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Weight	0.4 kg
Maximum Flow Rate	106 L/min	Installation Torque	80-85 lb-ft
Coil Type	5/8" Super Coil Low Watt (CAS)	Power Consumption	18 W
Coil Nut Tightening Torque	1 lb-ft	Variation of Opening Point	20-25% of Input Signal
Minimum Pressure Differential	21 bar
