2608 - General Category of Replacement Parts

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

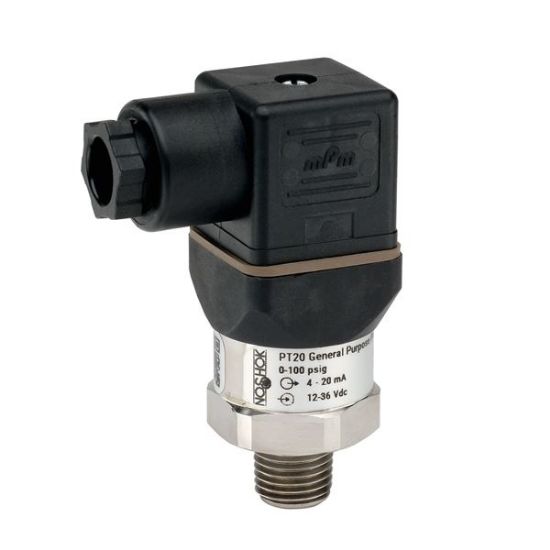

PT20-3000psig-1-1-2-8 - PT20 Series General Purpose Fixed Range Pressure Transmitter

Manufacturer: NOSHOK, Inc.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT20-3000psig-1-1-2-8

$196.42/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Application	HVAC Hydraulics & pneumatics Injection molding machines General Industrial Stamping & forming presses
Prop 65 Warnings	WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov	Warranty_yr	3
Related Items	2072-MFS, 1/4" National Pipe Thread (NPT), Male x Female, Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve 25-02S-S-02S, 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/4" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Type 25 Seal with 316 Stainless Steel Diaphragm 402-MFS, 1/4" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Needle Valve 5025, 1/4" National Pipe Thread (NPT), 15,000 psi Pressure Rating Piston Type 316 Stainless Steel Snubber	Pressure Range	0 to 3000 psi gauge
Media Temperature Range_ºC	-30 to 100	Media Temperature Range_ºF	-22 to 212
Accuracy	±0.5% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions	Proof Pressure	2 times full scale
Burst Pressure	3 times full scale	Output Signal	4 mA to 20 mA, 2-wire
Power Requirement	8 Vdc to 30 Vdc	Shock According to International Electrotechnical Commission (IEC) 60068-2-27_g	500
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6_g	10	Note for Accuracy	Uncertainty ±0.53% of span including non-linearity (0.50%), hysteresis (0.16%) and non-repeatability (0.10%) per IEC 61298-2. Compensated temperature error: 0.20% of span / 10 K.
Current Consumption	25 mA	Inch/Metric	Inch
Housing Material	316 Stainless Steel	Connection Material	316 Stainless Steel
Compensated Temperature Range_ºC	0 to 80	Process Connection	1/4" NPT Male
Environmental Rating	IP65	Compensated Temperature Range_ºF	32 to 176
Materials of Construction (Wetted Parts)	316 Stainless Steel, 13-8PH Stainless Steel	Process Connection Type	1/4" NPT Male
Type	PT20 General Purpose Fixed Range Pressure Transmitter	Electrical Connection	DIN form A
Storage Temperature [Max]	158 °F (70 °C)	Storage Temperature [Min]	-40 °F (-40 °C)
Ambient Temperature Range_ºC	-30 to 100	Ambient Temperature Range_ºF	-22 to 212
