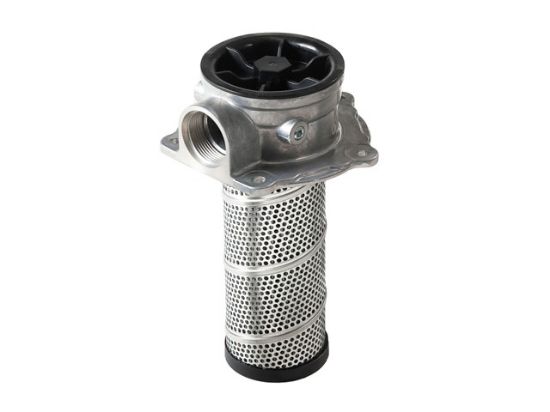

PT4 Series Low Pressure Filter - PT4210QBPGN161

Name: PT4 Series Low Pressure Filter - PT4210QBPGN161
SKU: PT4210QBPGN161

PT4 Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

Backordered

SKU PT4210QBPGN161

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Indicator Type	Plugged Indicator
Nominal Filter Rating	10 micron	Nominal Flow Rating	30 GPM (114 LPM)
Bypass	25 PSI (1.7 bar)	Options	No Option
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Pkg Qty	1	UOM	EA
Element Length	Double	Port	1 NPT
Replacement Element	936748	Operating Temperature	-40F to 225F (-40C to 107C)
Bypass	25 PSI (1.7 bar)	Filter Media Code	10Q
Parker Division	Hydraulic Filter	Seals	Nitrile
Indicator Type	Plugged Indicator	Element Length	Double
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Port	1 NPT
Operating Temperature	-40F to 225F (-40C to 107C)	Parker Group	Filtration
Port Type	NPT	Nominal Filter Micron Rating	10 micron
Filter Media Type	Microglass III	Filter Type	Low Pressure Filter
Series	PT4	Nominal Flow Rating	30 GPM (114 LPM)
Options	No Option

Product resources

PT Series (PDF)
