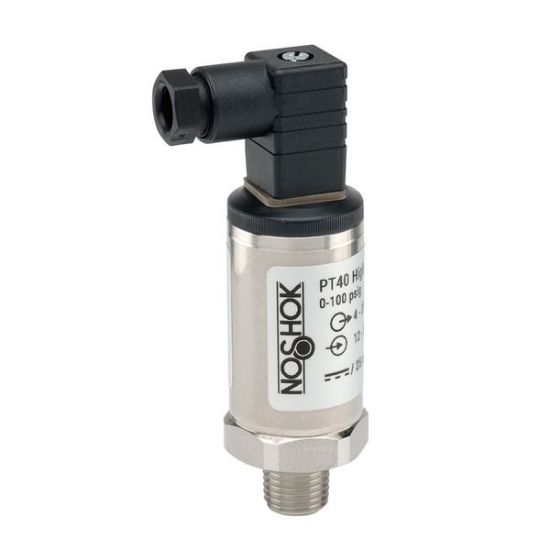

PT40-3000psig-1-5-45-7 - PT40 Series High Accuracy Fixed Range Pressure Transmitter

Manufacturer: NOSHOK, Inc.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT40-3000psig-1-5-45-7

$529.31/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Hydraulics & pneumatics Laboratory & test eequipment Power generation Stamping & forming presses Mobile equipment General Industrial
Prop 65 Warnings	WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov	Related Items	2072-MFS, 1/4" National Pipe Thread (NPT), Male x Female, Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve 25-02S-S-02S, 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/4" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Type 25 Seal with 316 Stainless Steel Diaphragm 402-MFS, 1/4" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Needle Valve 5025, 1/4" National Pipe Thread (NPT), 15,000 psi Pressure Rating Piston Type 316 Stainless Steel Snubber
Pressure Range	0 to 3000 psi gauge	Media Temperature Range_ºC	-30 to 100
Media Temperature Range_ºF	-20 to 212	Accuracy	±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions
Proof Pressure	2 times full scale	Burst Pressure	4 times full scale
Adjustment	±10% full scale for zero and span	Output Signal	0 Vdc to 10 Vdc, 3-wire
Power Requirement	14 Vdc to 30 Vdc	Current Consumption	8 mA
Process Connection Type	7/16-20 Male SAE J514 FIG 34B (non-adjustable)	Environmental Rating	IP65
Ambient Temperature Range_ºC	-30 to 85	Inch/Metric	Inch
Process Connection	7/16-20 Male SAE J514 FIG 34B (non-adjustable)	Compensated Temperature Range_ºC	0 to 80
Electrical Connection	DIN form C	Connection Material	316 Stainless Steel
Materials of Construction (Wetted Parts)	316 Stainless Steel, 13-8PH Stainless Steel	Type	PT40 High Accuracy Fixed Range Pressure Transmitter
Compensated Temperature Range_ºF	32 to 176	Housing Material	316 Stainless Steel
Ambient Temperature Range_ºF	-22 to 185
