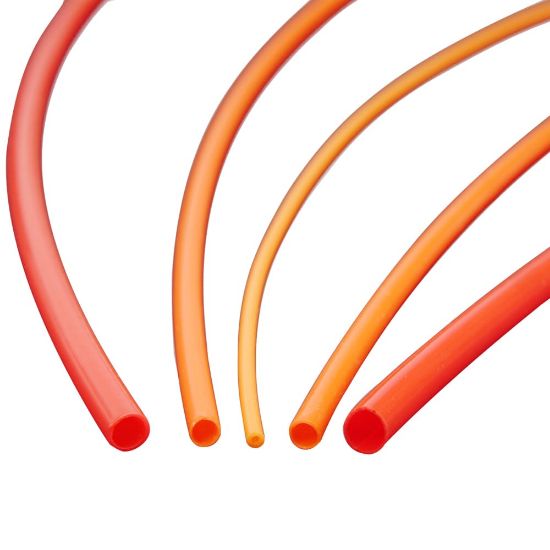

TFS14-NT - PTFE AWG Tubing

PTFE AWG (American Wire Gauge) Tubing is designed for electrical insulation applications that require high-temperature resistance (withstands soldering), chemical and abrasion resistance.

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	Backordered

SKU TFS14-NT

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	AWG14 Standard Wall
Standard Pack Qty (ft)	500 ft. spool	Product Type	AWG
Tube Inside Diameter	0.066	Tube Wall Thickness	0.016
Specifications Met	CSA 9032-01 600V	Length per Package	500 ft Spool
Minimum Operating Temperature	-100 °F	Maximum Operating Temperature	500 °F
Tube Material	Polytetrafluoroethylene (PTFE)	Compatible Fitting	n/a
Color	Natural (colors available upon request)	Media	Water
Size	AWG 14	Tube Outside Diameter	0.098 inch
Weight	0.0057 kg/m	Tube Inside Diameter	0.066 inch
