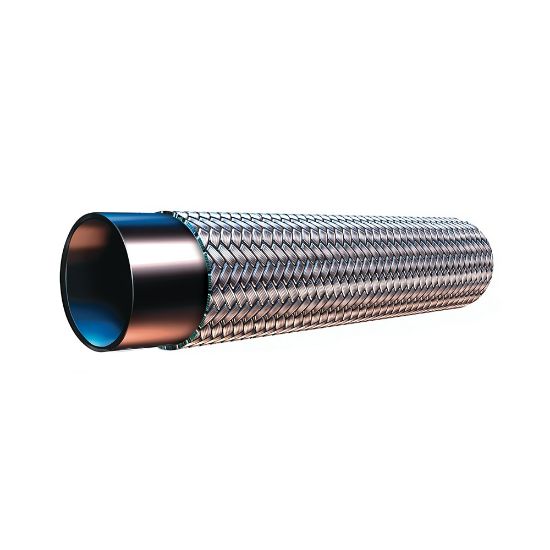

919B-4 - PTFE Hose - 919 Series

Name: 919B-4 - PTFE Hose - 919 Series
SKU: 919B-4
Price: 8.84 USD
Availability: InStock

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:

445 in stock

COLUMBIA, MO

445

Partner Available:

1090 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 919B-4

$8.84/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-4
Length	Random	Hose Type	SS Braid, Static Dissipative
Maximum Operating Pressure	3000 psi	Product Style	Smoothbore
Size	-4	Cover Material	n/a
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Hose Reinforcement Material	Braid of Stainless Steel
Maximum Operating Temperature	450 °F	Minimum Operating Temperature	-73 °C
Design Factor	4:1	Weight	0.09 kg/m
Vacuum Pressure Rating	711 mm-Hg	Media	Chemicals (Adhesive)
Minimum Bend Radius	51 mm	Inside Diameter	5 mm
Outside Diameter	0.330 inch	Compatible Fitting	90 Series
Specifications Met	SAE 100R1, Type 4B

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
