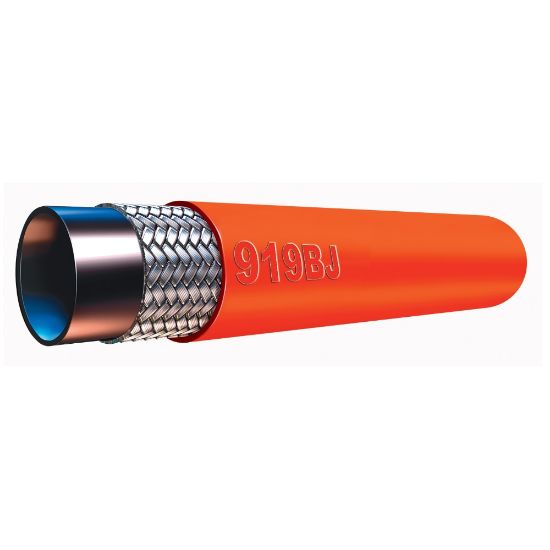

Picture of PTFE Hose - 919 Series - 919BJ-10-ORG

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PTFE Hose - 919 Series - 919BJ-10-ORG

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.
Availability:
Backordered
SKU 919BJ-10-ORG
$28.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTSize-10
LengthRandomHose TypeSilicone Jacket, Static Dissipative
Minimum Operating Temperature-40 °FDivisionParflex Division
Product TypePTFE HoseProduct StyleSmoothbore
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeHose Reinforcement MaterialBraid of Stainless Steel
Maximum Operating Temperature450 °FDesign Factor4:1
Vacuum Pressure Rating711 mm-HgMaximum Operating Pressure1500 psi
Inside Diameter1/2 inchMinimum Bend Radius165 mm
Size-10MediaLubricants (Oils)
Weight0.24 lb/ftApplicationCooling Lines
Outside Diameter0.780 inchCover MaterialExtruded Silicone
Compatible Fitting91N SeriesSpecifications MetSAE 100R1, Type 4B
