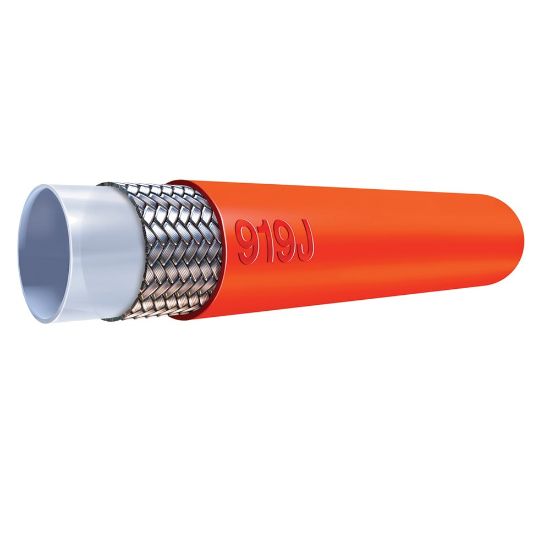

919J-10-RED - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	58 in stock

SKU 919J-10-RED

$27.14/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-10
Length	Random	Hose Type	Silicone Jacket, Natural
Minimum Operating Temperature	-40 °F	Product Style	Smoothbore
Vacuum Pressure Rating	28 Inch-Hg	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Hose Reinforcement Material	Braid of Stainless Steel	Maximum Operating Temperature	232 °C
Design Factor	4:1	Maximum Operating Pressure	1500 psi
Inside Diameter	1/2 inch	Specifications Met	FDA 21 CFR 177.1550
Minimum Bend Radius	165 mm	Size	-10
Media	Petroleum Hydraulic Fluids	Weight	0.35 kg/m
Outside Diameter	19.8 mm	Cover Material	Extruded Silicone
Compatible Fitting	91N Series
