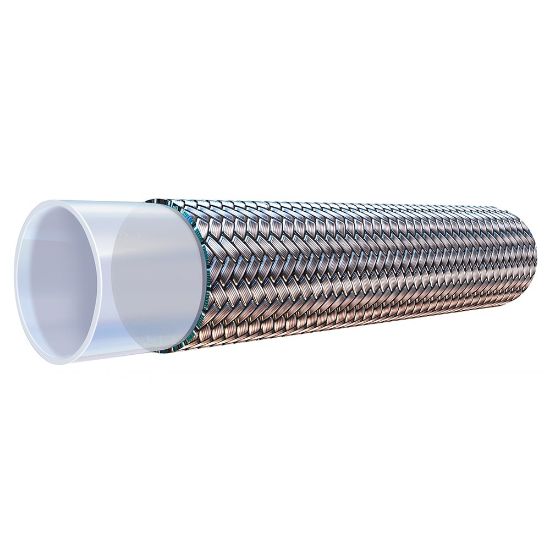

929-6 - PTFE Hose - 929B

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	34 in stock

SKU 929-6

$12.02/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Hose Style	Natural PTFE	Cover Material	n/a
Vacuum Pressure Rating	711.2 mm-Hg	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Hose Reinforcement Material	Braid of 304 Stainless Steel	Maximum Operating Temperature	232 °C
Minimum Operating Temperature	-73 °C	Cover Color	Natural
Design Factor	4:1	Size	-6
Minimum Bend Radius	4 inch	Media	Petroleum Hydraulic Fluids
Weight	0.18 kg/m	Inside Diameter	8 mm
Maximum Operating Pressure	172 bar	Outside Diameter	0.470 inch
Compatible Fitting	91N Series	Specifications Met	SAE 100R1, Type 4A
