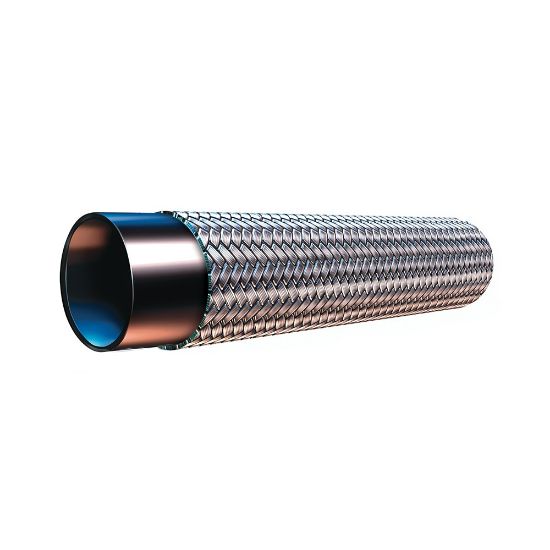

929B-12 - PTFE Hose - 929B

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	344 in stock

SKU 929B-12

$23.10/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Hose Style	Static Dissipative PTFE	Media	Air
Product Style	Static Dissipative	Cover Material	n/a
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Hose Reinforcement Material	Braid of 304 Stainless Steel
Maximum Operating Temperature	232 °C	Minimum Operating Temperature	-73 °C
Design Factor	4:1	Minimum Bend Radius	6-1/2 inch
Size	-12	Maximum Operating Pressure	1200 psi
Inside Diameter	5/8 inch	Weight	0.28 kg/m
Compatible Fitting	91N Series	Specifications Met	SAE 100R1, Type 4B
Vacuum Pressure Rating	304.8 mm-Hg	Outside Diameter	0.79 inch
