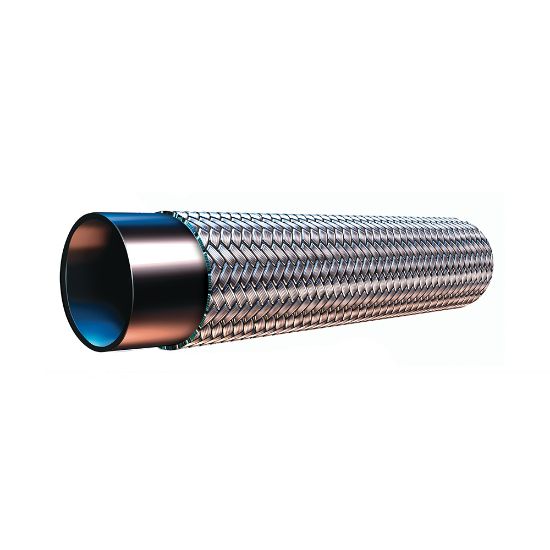

Picture of PTFE Hose - 929B - 929B-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PTFE Hose - 929B - 929B-8

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.
Availability:
2 Limited Stock
Springfield, MO2
SKU 929B-8
$16.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)13/32
Hose StyleStatic Dissipative PTFEDivisionParflex Division
Product TypePTFE HoseProduct StyleStatic Dissipative
Cover Materialn/aVacuum Pressure Rating711.2 mm-Hg
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeHose Reinforcement MaterialBraid of 304 Stainless Steel
Maximum Operating Temperature450 °FMinimum Operating Temperature-73 °C
Design Factor4:1Inside Diameter10 mm
Size-8Weight0.23 kg/m
MediaLubricants (Oils)Outside Diameter0.590 inch
Maximum Operating Pressure138 barApplicationHigh Temperature Hydraulics
Compatible Fitting91N SeriesSpecifications MetSAE 100R1, Type 4B
Minimum Bend Radius117 mm
