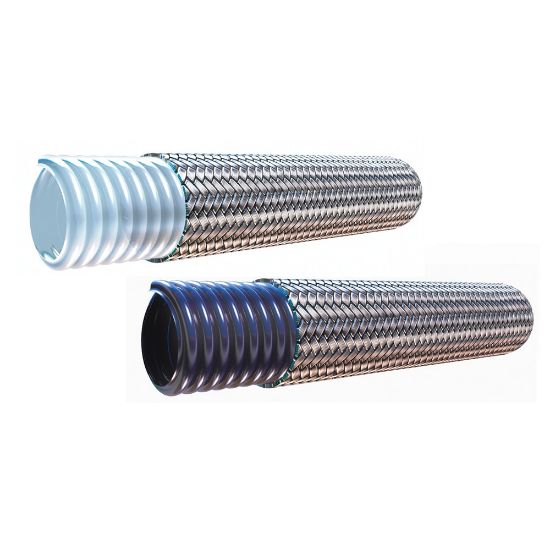

939-12 - PTFE Hose - Convoluted

Name: 939-12 - PTFE Hose - Convoluted
SKU: 939-12
Price: 51.81 USD
Availability: InStock

Parker Convoluted 939/939B PTFE Hose features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings.

Availability:

61 in stock

Olivette, MO

Partner Available:

51 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 939-12

$51.81/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Size	-12	Hose Type	Natural PTFE
Outside Diameter	27.7 mm	Weight	0.47 kg/m
Cover Material	n/a	Compatible Fitting	93N Series
Maximum Operating Temperature	450 °F	Hose Reinforcement Material	Stainless Steel
Vacuum Pressure Rating	711.2 mm-Hg	Media	Fuels (Oil)
Size	-12	Inside Diameter	19 mm
Design Factor	4:1	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Minimum Bend Radius	95 mm	Minimum Operating Temperature	-100 °F
Maximum Operating Pressure	7.6 MPa	Specifications Met	FDA 21 CFR 177.1550 (Tube)
