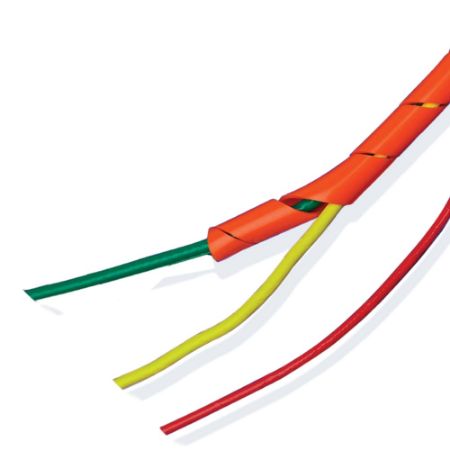

PTFE Spiral Cut Cable Wrap
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
PTFE Spiral Wrap is a flexible, chemical resistant covering that can be used to bundle wires, hoses, cords and cables and still allow individual routing out of the bundle.
Markets:
• Aerospace
• Automotive
• Industrial
Features/Benefits:
• Provides harnessing for wires and cable while allowing leads at various points
• Exceptional heat resistance
• Self-extinguishing
• Flexible
• Superior dielectric strength
• Available in left- or right-hand cut
Applications:
• Cable harnessing
• Wiring closets
Certifications:
• A-A-59602
• AMS 3653E
• ASTM D3295
• VW1, UL-83 (natural)
Technical Specifications:
• Dimensions are nominal
• Available in non-continuous 100 ft or 500 ft spools
• 100 ft. is the minimum item quantity sold
• Packaged on spools
• Custom packaging, sizes and colors are available upon request
• Spiral cut cable wrap is also quoted in FEP upon request
• All dimensions are nominal
| Action | SKU | Availability | Partner Available | Price | UOM | Outside Diameter (inch) | Tube Type | Maximum Operating Temperature | Pitch Diameter | Product Style | Minimum Operating Temperature | Tube Material | Outside Diameter | Disclaimer | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSWTF-1.00-NT-L | Backordered | 228 in stock | $16.52/foot | FT | 1 | Left Hand Cut | 260 °C | 1.000 | Left Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 1 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ASTM D3295 | |
| TSWTF-1.00-NT-R | Backordered | Backordered | $16.52/foot | FT | 1 | Right Hand Cut | 260 °C | 1.000 | Right Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 1 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | RoHS | |
| TSWTF-1/2-NT-L | Backordered | Backordered | $5.78/foot | FT | 0.5 | Left Hand Cut | 260 °C | 0.562 | Left Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.5 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-1/2-NT-R | Backordered | 250 in stock | $5.78/foot | FT | 0.5 | Right Hand Cut | 500 °F | 0.562 | Right Hand Cut | -450 °F | Polytetrafluoroethylene (PTFE) | 0.5 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ASTM D3295 | |
| TSWTF-1/4-NT-L | Backordered | Backordered | $2.52/foot | FT | 0.25 | Left Hand Cut | 260 °C | 0.375 | Left Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.25 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | RoHS | |
| TSWTF-1/4-NT-R | Backordered | Backordered | $2.52/foot | FT | 0.25 | Right Hand Cut | 500 °F | 0.375 | Right Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.25 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-1/8-NT-L | Backordered | Backordered | $1.45/foot | FT | 0.125 | Left Hand Cut | 500 °F | 0.212 | Left Hand Cut | -450 °F | Polytetrafluoroethylene (PTFE) | 0.125 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-1/8-NT-R | Backordered | Backordered | $1.45/foot | FT | 0.125 | Right Hand Cut | 260 °C | 0.212 | Right Hand Cut | -450 °F | Polytetrafluoroethylene (PTFE) | 0.125 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-3/16-NT-L | Backordered | Backordered | $1.85/foot | FT | 0.188 | Left Hand Cut | 260 °C | 0.312 | Left Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.188 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-3/16-NT-R | Backordered | Backordered | $1.85/foot | FT | 0.188 | Right Hand Cut | 500 °F | 0.312 | Right Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.188 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-3/4-NT-L | Backordered | Backordered | $10.00/foot | FT | 0.75 | Left Hand Cut | 500 °F | 0.875 | Left Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.75 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-3/4-NT-R | Backordered | Backordered | $10.00/foot | FT | 0.75 | Right Hand Cut | 500 °F | 0.875 | Right Hand Cut | -450 °F | Polytetrafluoroethylene (PTFE) | 0.75 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | AMS 3653E | |
| TSWTF-3/8-NT-L | Backordered | Backordered | $5.02/foot | FT | 0.375 | Left Hand Cut | 500 °F | 0.437 | Left Hand Cut | -450 °F | Polytetrafluoroethylene (PTFE) | 0.375 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ASTM D3295 | |
| TSWTF-3/8-NT-R | Backordered | Backordered | $5.02/foot | FT | 0.375 | Right Hand Cut | 500 °F | 0.437 | Right Hand Cut | -268 °C | Polytetrafluoroethylene (PTFE) | 0.375 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | ASTM D3295 |
