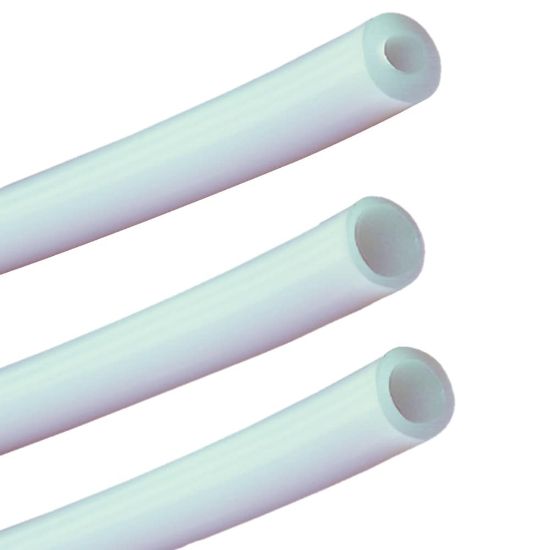

Picture of PTFE Tubing - 101-0250047-NT-50

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PTFE Tubing - 101-0250047-NT-50

PTFE Tubing – Series 101/201 is a high temperature tubing operating up to 500°F/260°C. Fluoroplastic tubing is chemically inert, corrosion resistant, and features the lowest coefficient of friction of any tubing.
Availability:
Backordered
SKU 101-0250047-NT-50
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTOrder Size1/4
Product TypeHeavy WallTube Wall Thickness0.047
Tube Inside Diameter.157Standard Pack Qty (ft)50.0
Tube Outside Diameter0.25Weight0.042 kg/m
DivisionParflex DivisionMaximum Operating Temperature500 °F
ApplicationCompressed AirSpecifications MetUSP Compliant Class VI
Size1/4 inchColorNatural
MediaChemicalsTube MaterialPolytetrafluoroethylene (PTFE)
Compatible FittingTrueSeal™Length per Package15.2 m
Minimum Bend Radius16 mmTube Inside Diameter3.99 mm
Tube Outside Diameter0.25 inchMinimum Burst Pressure840 psi
Maximum Operating Pressure14 barMinimum Operating Temperature-75 °C
