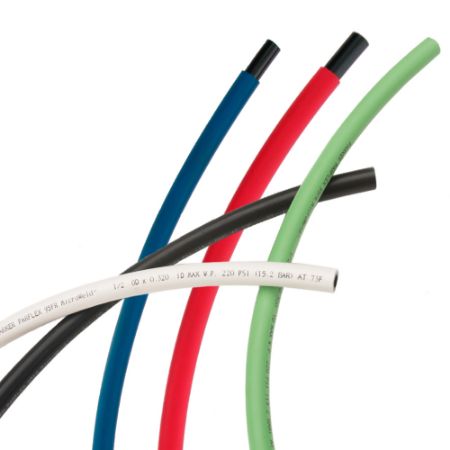

PU Tubing - Flame Resistant

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The 95FR Series Weld Spatter Resistant Tubing is lightweight and extremely flexible. It is an ideal option for low to medium pressure air and water supply lines where weld spatter protection is required. The double wall design has a flame resistant jacket made from a material that meets the UL94 V-0 standard and the tubing offers excellent hydrolytic stability, ensuring the tube will not degrade when used in water based applications. Parflex 95FR tubing is available in multiple colors for easy line identification.

Markets:
• Industrial

Features/Benefits:
• UL-94 V0 Flame resistant jacket material
• Exellent flexibility
• Abrasion resistant
• Moisture resistant
• Weld Spatter resistant
• Grease and Oil resistant
• Silicone and Halogen free

Applications:
• Pneumatic Systems
• Robotic Welding
• End-of-Arm Tooling
• General Robotics
• General Automation

Technical Specifications:
• Working and burst pressures rated at 73°F /23°C

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Order Size	Product Type	Standard Pack Qty (ft)	Color	Maximum Operating Temperature	Cover Color	Length per Package	Diameter	Cover Thickness	Cover Material	Tube Inside Diameter	Weight	Minimum Operating Temperature	Compatible Fitting	Minimum Burst Pressure	Tube Material	Minimum Bend Radius	Tube Outside Diameter	Maximum Operating Pressure
95FR-4-BLK-0250	Backordered	Backordered	POR	FT	-4	Inch	250.0	Black	75 °C	Black	250 ft	0.340 inch	0.045 inch	Proprietary Material	3.0 mm	0.042 lb/ft	-40 °F	68PLM	720 psi	Polyurethane	3/4 inch	6.4 mm	240 psi
95FR-4-BLK-0500	Backordered	Backordered	POR	FT	-4	Inch	500.0	Black	165 °F	Black	500 ft	0.340 inch	0.045 inch	Proprietary Material	0.160 inch	0.042 lb/ft	-40 °F	68PLM	5.0 MPa	Polyurethane	3/4 inch	6.4 mm	16.5 bar
95FR-4-BLU-0250	Backordered	Backordered	POR	FT	-4	Inch	250.0	Blue	165 °F	Blue	250 ft	0.340 inch	0.045 inch	Proprietary Material	3.0 mm	0.062 kg/m	-40 °C	68PLM	720 psi	Polyurethane	3/4 inch	1/4 inch	1.65 MPa
95FR-4-RED-0500	Backordered	Backordered	POR	FT	-4	Inch	500.0	Red	165 °F	Red	500 ft	8.6 mm	0.045 inch	Proprietary Material	0.160 inch	0.042 lb/ft	-40 °F	68PLM	5.0 MPa	Polyurethane	19 mm	1/4 inch	240 psi
95FR-4-WHT-0250	Backordered	Backordered	POR	FT	-4	Inch	250.0	White	165 °F	White	250 ft	8.6 mm	0.045 inch	Proprietary Material	3.0 mm	0.042 lb/ft	-40 °F	68PLM	50 bar	Polyurethane	3/4 inch	6.4 mm	240 psi
95FR-4-WHT-0500	Backordered	Backordered	POR	FT	-4	Inch	500.0	White	75 °C	White	500 ft	0.340 inch	0.045 inch	Proprietary Material	3.0 mm	0.042 lb/ft	-40 °C	68PLM	50 bar	Polyurethane	3/4 inch	6.4 mm	1.65 MPa
95FR-6-WHT-0500	Backordered	Backordered	POR	FT	-6	Inch	500.0	White	165 °F	White	500 ft	11.8 mm	0.045 inch	Proprietary Material	0.250 inch	0.103 kg/m	-40 °F	68PLM	48 MPa	Polyurethane	25.5 mm	3/8 inch	1.65 MPa
