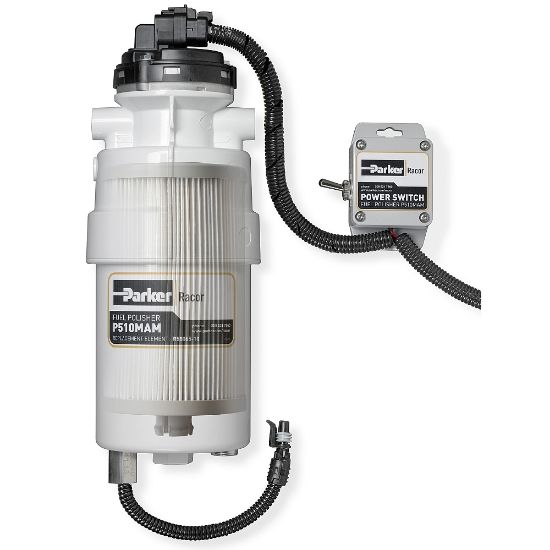

P510MAM - Pump and Filter Fuel Polishing System – Racor P510MAM Series

Name: P510MAM - Pump and Filter Fuel Polishing System – Racor P510MAM Series
SKU: P510MAM
Price: 1225.37 USD
Availability: InStock

The Racor P510MAM Series Pump and Filter Fuel Polishing System helps extend the life of on-board filters by removing contaminants from stored fuel. It can be used for continuous operation on fuel tanks, or as part of a day-tank transfer system.

Availability:

6 in stock

Decatur, IL

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P510MAM

$1,225.37/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Series Type	Cartridge FF/WS Pump
Flow Rate	73 Gal/hour	Water Sensor Option	Included Stainless Steel Probe
Pump Type	12/24V DC Brushless, Continuous duty	Bowl Type	Powder Coated Aluminum
Mounting Type	Bracket Included	For Fluid Type	Diesel / B20
Height	11.5 inch	Port Size	M16x1.5 ORB Adapters available
Heat Type	None	Compatible Element	R58039-2 = 2 micron<br>R58039-10 = 10 micron<br>R58039-30 = 30 mcron
Depth	5.2 inch	Optional Accessories	Fitting adapters available. See Product Overview & Support Tabs
Weight	4.2 lb	Clean Pressure Drop	0.8 psi

Product resources

Literature and Reference Materials

Selector Guides

Racor--P510MAM Fuel Polisher--RSL0381 (PDF)
