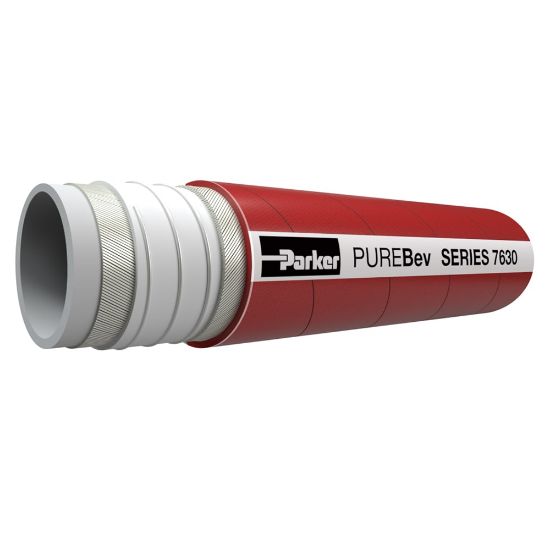

7630-4000 - PUREBev Hose Series 7630

PUREBev Series 7630 is a flexible delivery and suction hose designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	Backordered

SKU 7630-4000

$61.86/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Hose O.D. (inch)	4.72
Application	Beverage Transfer	Outside Diameter	120 mm
Hose Inner Tube Material	White	Media	Food & Beverage (Wine)
Minimum Bend Radius	450 mm	Specifications Met	REACH
Vacuum Pressure Rating	90 kPa	Maximum Operating Pressure	250 psi
Weight	3.52 lb/ft	Minimum Burst Pressure	48 bar
Maximum Operating Temperature	120 °C	Cover Structure	Smooth
Hose Reinforcement Material	Synthetic Plies	Minimum Operating Temperature	-40 °F
Inside Diameter	102 mm

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
