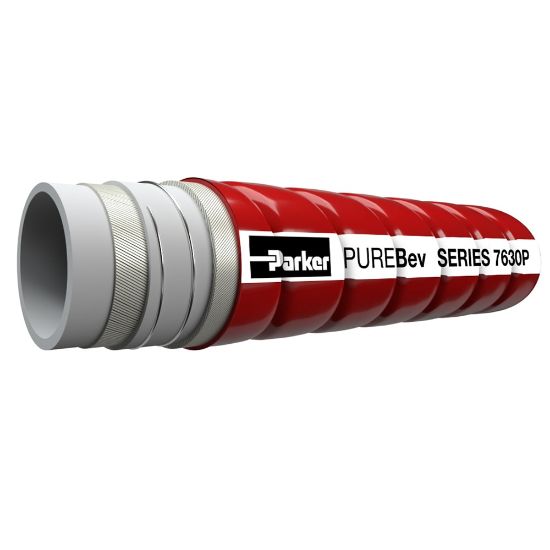

7630P-1500 - PUREBev Hose Series 7630P

PUREBev Series 7630P features our PRO cover and is designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	474 in stock

SKU 7630P-1500

$32.94/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Application	Beverage Transfer
Hose O.D. (inch)	2.07	Hose I.D. (inch)	1.5
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Weight	1.38 kg/m
Hose Reinforcement Material	Synthetic Plies	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	16 bar	Media	Food & Beverage (Beer)
Minimum Burst Pressure	900 psi	Vacuum Pressure Rating	26.5 Inch-Hg
Inside Diameter	38 mm	Outside Diameter	52.5 mm
Specifications Met	CE	Maximum Operating Temperature	248 °F
Hose Inner Tube Material	Phtalates Free	Cover Material	Low Friction Material
Minimum Bend Radius	120 mm
