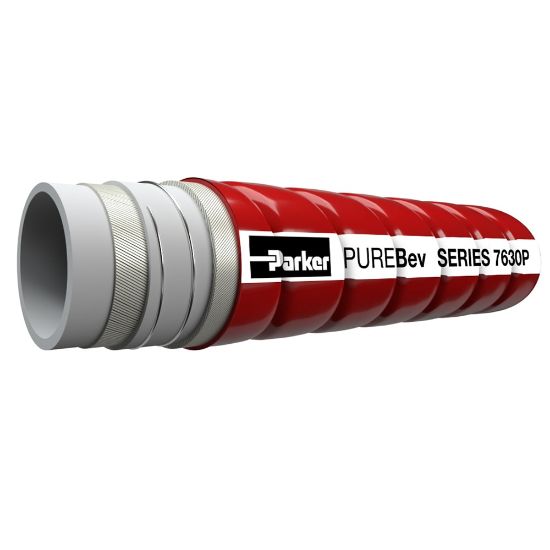

7630P-2500 - PUREBev Hose Series 7630P

PUREBev Series 7630P features our PRO cover and is designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	90 in stock

SKU 7630P-2500

$46.42/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2.5
Application	Beverage Transfer	Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP
Hose O.D. (inch)	3.17	Specifications Met	3A
Outside Diameter	80.5 mm	Maximum Operating Pressure	16 bar
Minimum Bend Radius	7.68 inch	Cover Material	Low Friction Material
Vacuum Pressure Rating	26.5 Inch-Hg	Minimum Operating Temperature	-40 °C
Minimum Burst Pressure	60 bar	Weight	2.79 kg/m
Hose Inner Tube Material	White	Media	Food & Beverage (Wine)
Hose Reinforcement Material	Galvanized Wire Helix	Maximum Operating Temperature	248 °F
Inside Diameter	63.5 mm

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
