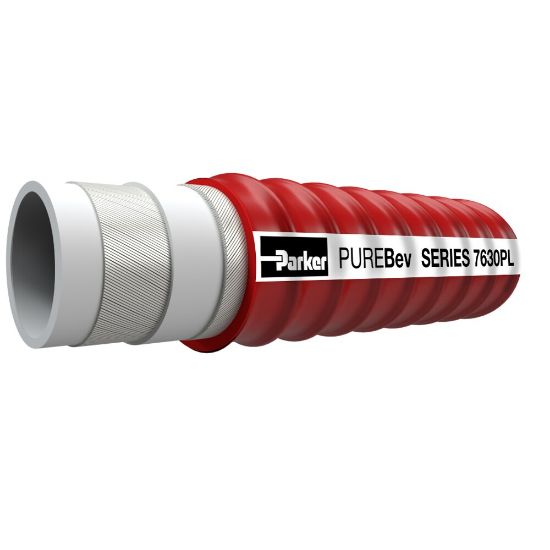

7630PL-1500 - PUREBev Hose Series 7630PL

PUREBev Series 7630PL featuring our PLUS cover confirms exceptional quality. This extra flexible, light weight delivery and suction hose is designed for non-fatty food products including beer and wine. Tube consist of premium Butyl and UHMWPE materials.

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	48 in stock

SKU 7630PL-1500

$39.54/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Vacuum Rating (inch of Hg)	26.5
Hose I.D. (inch)	1.5	Maximum Operating Temperature	248 °F
Hose Reinforcement Material	Thermoplastic Wire Helix	Minimum Burst Pressure	30 bar
Media	Food & Beverage (Wine)	Hose Inner Tube Material	Butyl
Inside Diameter	38 mm	Cover Material	Rubber (red outer thermoplastic helix nested within the rubber cover)
Vacuum Pressure Rating	90 kPa	Specifications Met	MHLW
Cover Structure	Deeply Corrugated	Maximum Operating Pressure	10 bar
Weight	1.4 kg/m	Minimum Bend Radius	3.94 inch
Cover Color	Red (red outer thermoplastic helix nested within the rubber cover)	Minimum Operating Temperature	-13 °F

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
