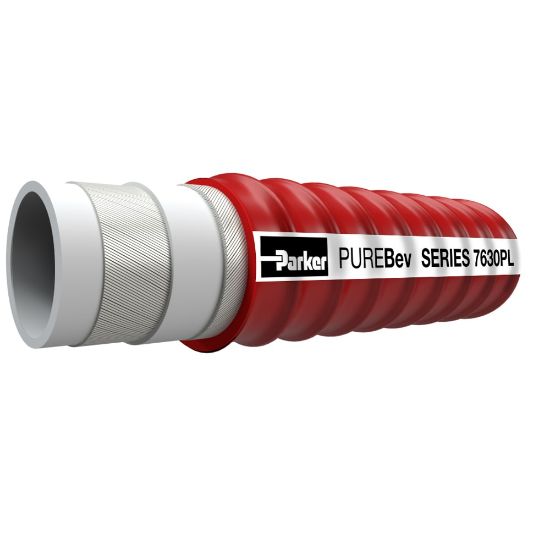

7630PL-2000 - PUREBev Hose Series 7630PL

PUREBev Series 7630PL featuring our PLUS cover confirms exceptional quality. This extra flexible, light weight delivery and suction hose is designed for non-fatty food products including beer and wine. Tube consist of premium Butyl and UHMWPE materials.

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	51 in stock

SKU 7630PL-2000

$45.87/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Vacuum Rating (inch of Hg)	26.5	Specifications Met	GMP
Cover Material	Rubber (red outer thermoplastic helix nested within the rubber cover)	Minimum Burst Pressure	30 bar
Cover Color	Red (red outer thermoplastic helix nested within the rubber cover)	Vacuum Pressure Rating	90 kPa
Media	Food & Beverage (Wine)	Minimum Operating Temperature	-25 °C
Hose Reinforcement Material	Thermoplastic Wire Helix	Weight	1.24 lb/ft
Cover Structure	Deeply Corrugated	Maximum Operating Temperature	248 °F
Inside Diameter	51 mm	Hose Inner Tube Material	Phtalates Free
Minimum Bend Radius	100 mm	Maximum Operating Pressure	150 psi
