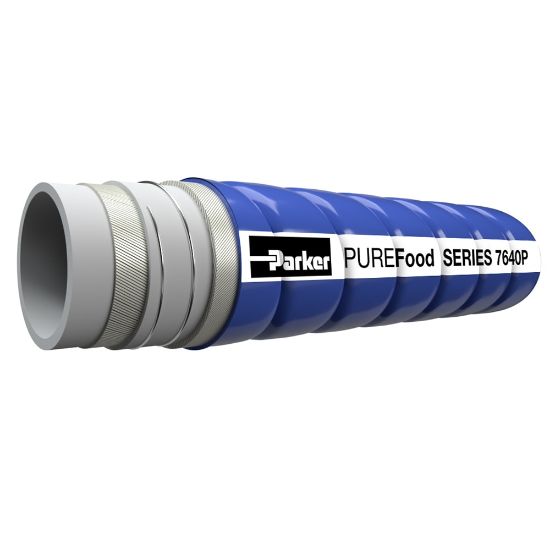

7640P-2000 - PUREFood Hose Series 7640P

PUREFood Series 7640P is a high quality, flexible delivery and suction hose. This series is designed to convey cooking oils and fat, dairy products, and oily sauces. The tube material consists of premium nitrile (NBR).

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	149 in stock

SKU 7640P-2000

$40.94/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Application	Food Transfer	Hose O.D. (inch)	2.52
Meets Industry Specifications	FDA, BFR, DM, MHLW, CE, 3A, REACH	Maximum Operating Temperature	176 °F
Maximum Operating Pressure	10 bar	Inside Diameter	51 mm
Outside Diameter	66 mm	Weight	1.27 lb/ft
Minimum Operating Temperature	-25 °C	Cover Material	Low Friction Material
Minimum Bend Radius	3.94 inch	Minimum Burst Pressure	450 psi
Vacuum Pressure Rating	90 kPa	Hose Inner Tube Material	Phtalates Free
Hose Reinforcement Material	Synthetic Plies	Media	Food & Beverage (Oily Sauces)
Specifications Met	BfR
