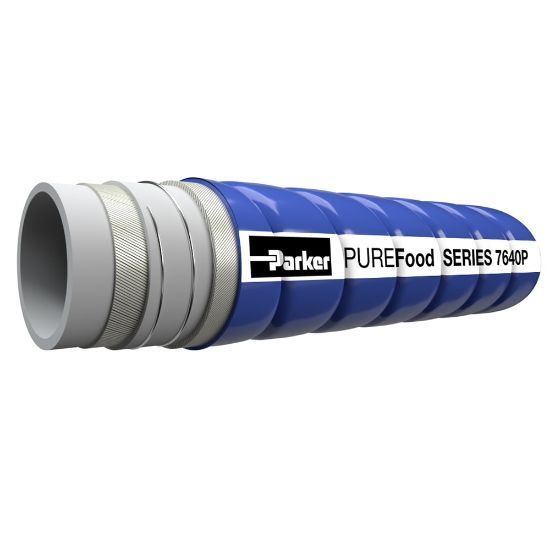

7640P-3000 - PUREFood Hose Series 7640P

PUREFood Series 7640P is a high quality, flexible delivery and suction hose. This series is designed to convey cooking oils and fat, dairy products, and oily sauces. The tube material consists of premium nitrile (NBR).

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	Backordered

SKU 7640P-3000

$60.11/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Hose O.D. (inch)	3.62	Application	Food Transfer
Meets Industry Specifications	FDA, BFR, DM, MHLW, CE, 3A, REACH	Maximum Operating Temperature	176 °F
Maximum Operating Pressure	150 psi	Minimum Operating Temperature	-13 °F
Hose Inner Tube Material	White	Inside Diameter	76 mm
Outside Diameter	91.0 mm	Cover Material	Low Friction Material
Minimum Bend Radius	5.91 inch	Minimum Burst Pressure	450 psi
Vacuum Pressure Rating	26.5 Inch-Hg	Hose Reinforcement Material	Galvanized Wire Helix
Media	Food & Beverage (Oily Sauces)	Weight	1.95 lb/ft
Specifications Met	EX

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
