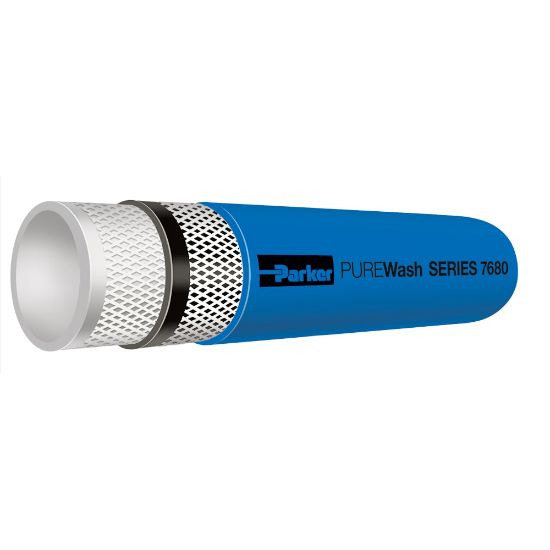

7680-12-BLU-RL - PUREWash Hose Series 7680

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	657 in stock

SKU 7680-12-BLU-RL

$4.62/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	0.75
Cover Color	Blue	Application	Equiment Sanitation, Preventative Maintenance
Hose O.D. (inch)	1.156	Hose I.D. (mm)	19.1
Hose O.D. (mm)	29.4	Standard Package Quantity	400 ft reel
Maximum Working Temperature (C)	100	Maximum Working Temperature (F)	212
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Minimum Operating Temperature	-40 °F	Specifications Met	N/A
Maximum Operating Temperature	100 °C	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Maximum Operating Pressure	300 psi	Minimum Bend Radius	152 mm
Inside Diameter	19.1 mm	Compatible Fitting	HY Series
Weight	0.17 kg/m	Cover Color	White
Outside Diameter	1.156 inch	Media	Food & Beverage (Food & Beverage Processing Plants)
Hose Inner Tube Material	Smooth	Hose Reinforcement Material	4 Plies
