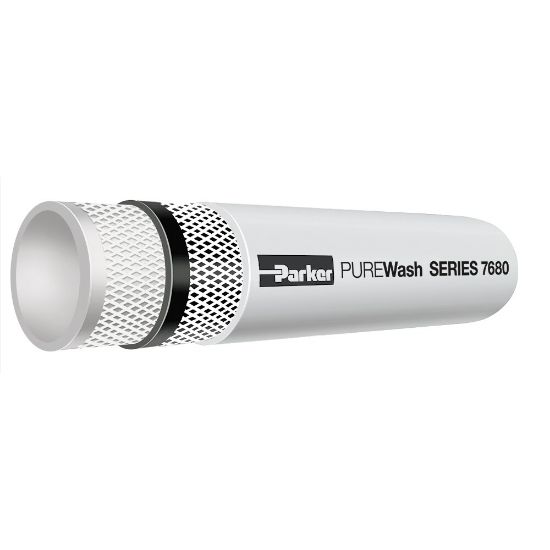

PUREWash Hose Series 7680 - 7680-12-WHT-BX

Name: PUREWash Hose Series 7680 - 7680-12-WHT-BX
SKU: 7680-12-WHT-BX

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.

Availability:

Backordered

SKU 7680-12-WHT-BX

$5.73

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	0.75
Application	Equiment Sanitation, Preventative Maintenance	Hose O.D. (inch)	1.156
Cover Color	White	Hose I.D. (mm)	19.1
Hose O.D. (mm)	29.4	Standard Package Quantity	50 ft box
Maximum Working Temperature (C)	100	Maximum Working Temperature (F)	212
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Minimum Operating Temperature	-40 °F	Division	Hose Products Division
Specifications Met	N/A	Maximum Operating Temperature	212 °F
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	6 inch
Weight	0.37 lb/ft	Outside Diameter	29.4 mm
Compatible Fitting	HY Series	Cover Color	White
Maximum Operating Pressure	20.7 bar	Application	Food Transfer
Media	Food & Beverage (Food & Beverage Processing Plants)	Inside Diameter	0.75 inch
Hose Inner Tube Material	Smooth	Hose Reinforcement Material	4 Plies
