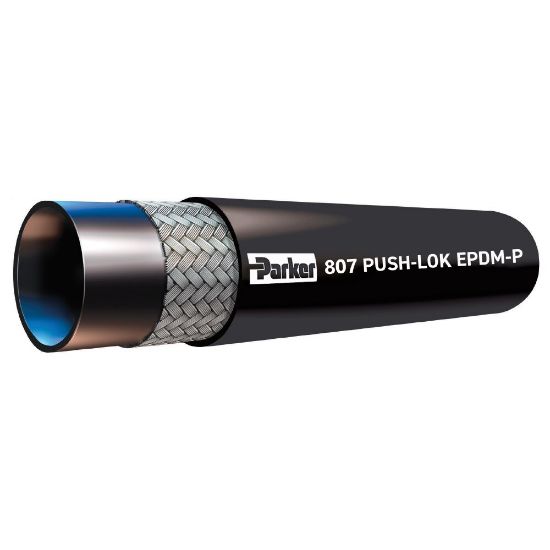

Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose - 807-10-BLK-RL

Name: Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose - 807-10-BLK-RL
SKU: 807-10-BLK-RL

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:

Backordered

SKU 807-10-BLK-RL

$7.31

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Bend Radius	88.9 mm
Weight	0.30 kg/m	Cover Material	Black synthetic rubber smooth finish
Division	Hose Products Division	Application	DI water and glycol based coolant solutions, air, phosphate ester
Compatible Fitting	82 Series	Maximum Operating Temperature	212 °F
Hose Outside Diameter	23.1 mm	Media	air, water (including PCW), coolant solutions
Hose Reinforcement Material	One fiber braid	Minimum Operating Temperature	212 °C
Maximum Operating Pressure	150 psi	Specifications Met	UL94 V-0 Flame resistance rating
Hose Inner Tube Material	Black EPDM peroxide cured

Product resources

Literature and Reference Materials
