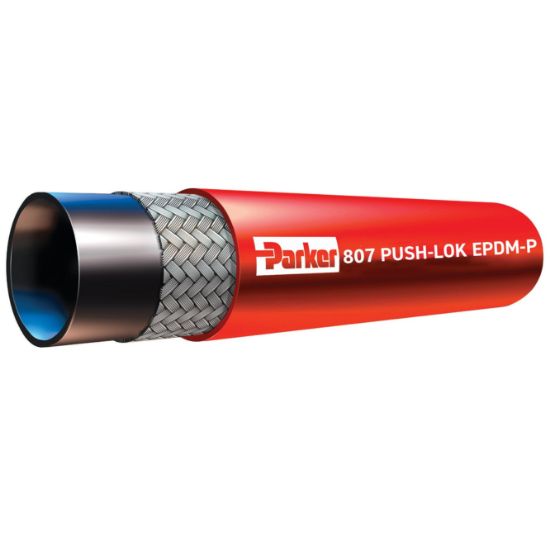

Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose - 807-4-RED-RL

Name: Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose - 807-4-RED-RL
SKU: 807-4-RED-RL

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:

Backordered

SKU 807-4-RED-RL

$3.67

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inner Tube Material	Black EPDM peroxide cured
Specifications Met	UL94 V-0 Flame resistance rating	Cover Material	Red synthetic rubber smooth finish
Maximum Operating Temperature	100 °C	Hose Outside Diameter	0.50 inch
Application	Media Transfer	Minimum Operating Temperature	-40 °F
Division	Hose Products Division	Weight	.011 kg/m
Maximum Operating Pressure	1.03 MPa	Hose Reinforcement Material	One fiber braid
Media	air, water (including PCW), coolant solutions	Compatible Fitting	82 Series
Minimum Bend Radius	1.0 inch

Product resources

Literature and Reference Materials
