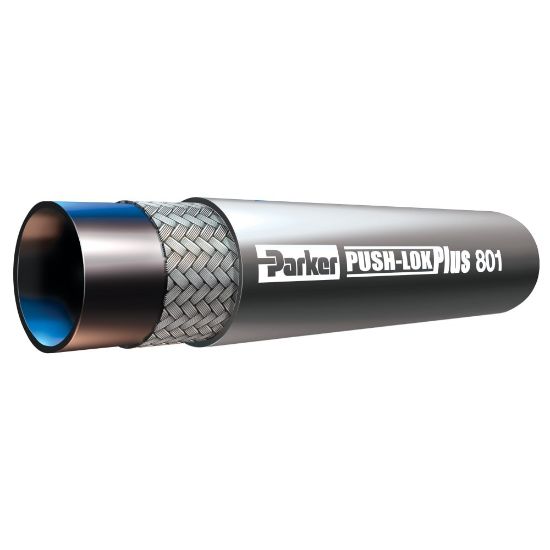

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-10-GRA-RL

Name: Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-10-GRA-RL
SKU: 801-10-GRA-RL

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:

Backordered

SKU 801-10-GRA-RL

$5.67

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Gray
Hose I.D. (size)	-10	Division	Hose Products Division
Specifications Met	N/A	Design Factor	4:1
Maximum Operating Pressure	300 psi	Size	-10
Inside Diameter	5/8 inch	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	16 mm	Application	Lubricating Oils
Hose Reinforcement Material	1 Braid of Fiber	Outside Diameter	23 mm
Media	Lubricants	Weight	0.28 kg/m
Cover Material	MSHA Approved	Minimum Bend Radius	150 mm
Compatible Fitting	HY Series	Vacuum Pressure Rating	381 mm-Hg
Maximum Operating Temperature	257 °F (Oil)	Minimum Operating Temperature	-40 °C (Oil)
