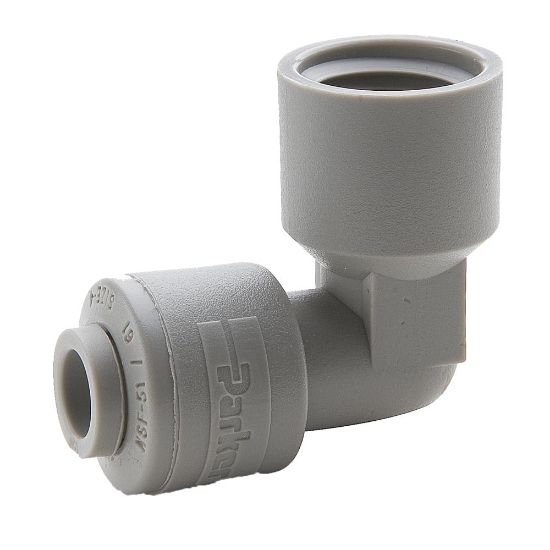

A4FE4-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	66 in stock

SKU A4FE4-MG

$3.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Color	Gray
Shape	Elbow 90°	Connection 2 Type	Female NPT
Connection 1 Size	1/4"	Connection 2 Size	1/4"
Connection 1 Type	Push-to-Connect	Configuration	Tube to Female Pipe
Body Material	Acetal	Maximum Operating Pressure	300 psi
Minimum Operating Temperature	-20 °F	Body Material	Acetal
Seal Material	EPDM (O-Ring)	Maximum Operating Temperature	82.2 °C
Specifications Met	NSF/ANSI 51	Dimensional Weight	0.2914 lb
