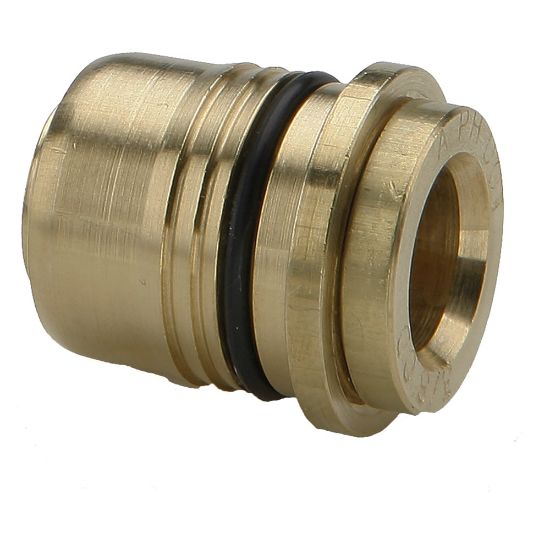

PTCCE-6 - Push-to-Connect Cartridges, Transportation

Parker's SAE encapsulated cartridge allows the user to eliminate the space and labor required to install and assemble a conventional pipe thread fitting.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU PTCCE-6

$11.02/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	0.650"
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Maximum Operating Temperature	200 °F
Seal Material	Buna N (O-Ring)	Body Material	Brass
Maximum Operating Pressure	250 psi	Tube Material	Brass
Minimum Operating Temperature	-40 °C	Connection 1 Type	Push-to-Connect
Specifications Met	D.O.T. FMVSS 571.106	Product Style	PMT Cartridge
