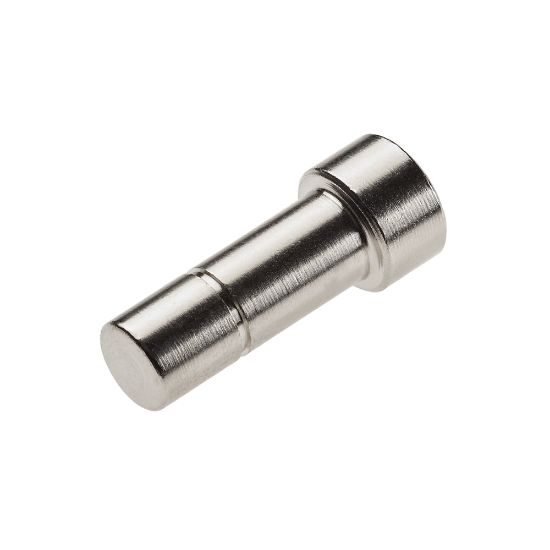

139PLP-12M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 139PLP-12M

$4.13/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	12 mm
Product Style	Plug	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Minimum Operating Temperature	0 °F
Hex Size	n/a	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Industry	Automotive	Body Material	Brass, Nickel-plated
For Fluid Type	Inert Gases	Maximum Operating Pressure	20.6 bar
Tube Material	Nylon	Region of Origin	United States
Gripping Ring Material	Stainless Steel
