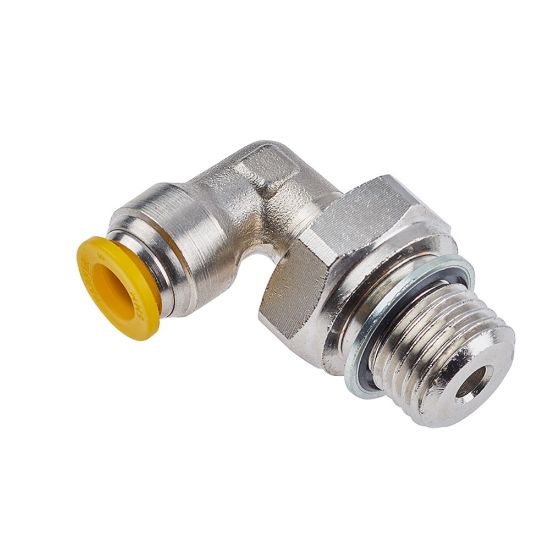

169PLP-4M-4G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	3 in stock

SKU 169PLP-4M-4G

$8.88/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Shape	Elbow 90° - Swivel
Connection 2 Type	Male BSPP	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Minimum Operating Temperature	0 °F
For Fluid Type	Air	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Industry	Automotive	Body Material	Brass, Nickel-plated
Maximum Operating Pressure	20.6 bar	Region of Origin	United States
Gripping Ring Material	Stainless Steel	Tube Material	Polyethylene
Hex Size	3/4 inch
