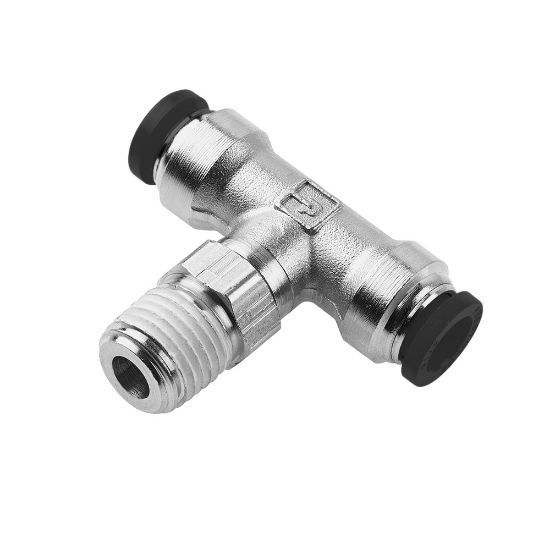

172PLP-4-0 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 22 days
Partner Available:	Backordered

SKU 172PLP-4-0

$11.48/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male NPTF	Connection 2 Size	10-32
Shape	Branch Tee - Swivel	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Industry	Industrial Manufacturing Equipment
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	For Fluid Type	Inert Gases
Maximum Operating Pressure	20.6 bar	Region of Origin	United States
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	93.3 °C
Minimum Operating Temperature	-17.7 °C	Tube Material	Rigid Nylon
Hex Size	3/8 inch
