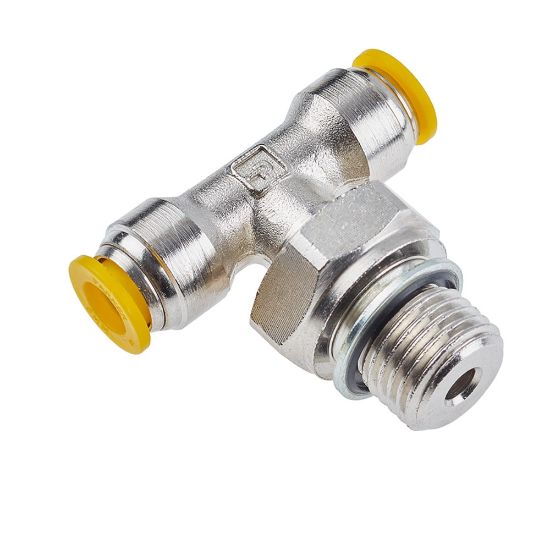

172PLP-8M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 172PLP-8M-2G

$17.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	8 mm
Connection 2 Size	8 mm	Connection 1 Type	Push-to-Connect
Connection 3 Size	1/8"	Connection 2 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 3 Type	Male BSPP
Shape	Branch Tee - Swivel	Hex Size	9/16 inch
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Specifications Met	UL 94 V-0	Industry	Semiconductor
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	For Fluid Type	Inert Gases
Maximum Operating Pressure	20.6 bar	Tube Material	Nylon
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Minimum Operating Temperature	-17.7 °C
