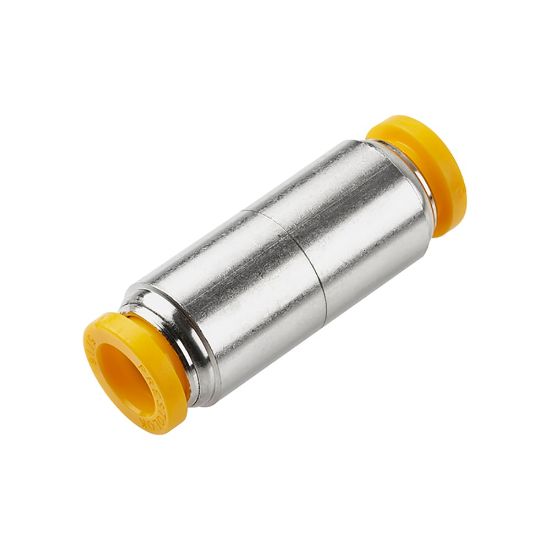

62PLP-10M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 62PLP-10M

$10.17/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	10 mm
Connection 2 Size	10 mm	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Shape	Union	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Hex Size	n/a
For Fluid Type	Oil	Specifications Met	UL 94 V-0
Industry	Semiconductor	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Body Material	Brass, Nickel-plated
Maximum Operating Pressure	20.6 bar	Tube Material	Nylon
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Minimum Operating Temperature	-17.7 °C
