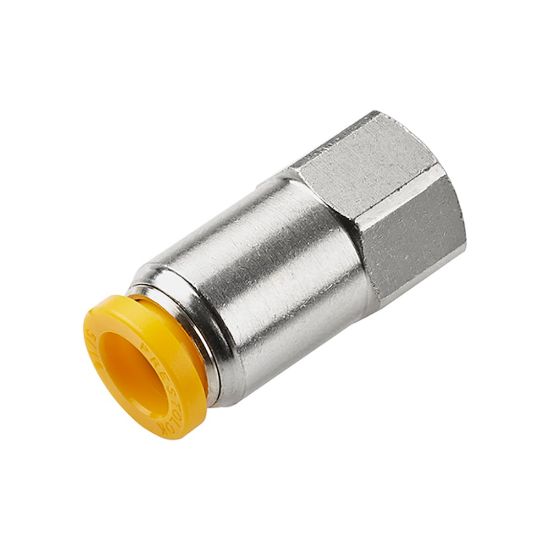

66PLP-8M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 66PLP-8M-2G

$12.67/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	8 mm
Connection 2 Size	1/8"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Female BSPP	Hex Size	9/16 inch
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
For Fluid Type	Oil	Maximum Operating Pressure	300 psi
Industry	Industrial Manufacturing Equipment	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	Region of Origin	United States
Gripping Ring Material	Stainless Steel	Minimum Operating Temperature	-17.7 °C
Tube Material	Polyethylene
