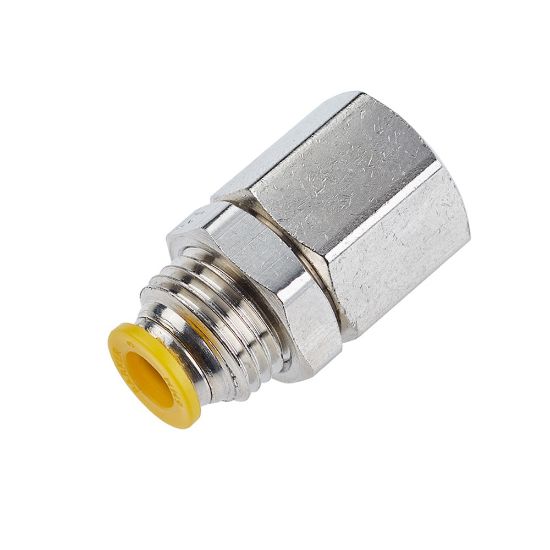

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLPBH-10M-6G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLPBH-10M-6G
SKU: 66PLPBH-10M-6G

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU 66PLPBH-10M-6G

$15.23

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	10 mm
Connection 2 Size	3/8"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Product Style	Bulkhead
Connection 2 Type	Female BSPP	Brand	PARKER
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Industry	Material Handling	Technology	Fluid & Gas Handling
Hex Size	1 inch	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Minimum Operating Temperature	0 °F
Application	Vacuum	Specifications Met	UL 94 V-0
Materials of Construction	PVDF (Button)	Body Material	Brass, Nickel-plated
For Fluid Type	Inert Gases	Maximum Operating Pressure	20.6 bar
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	93.3 °C	Tube Material	Polyurethane 90 to 95 Durometer Shore A
