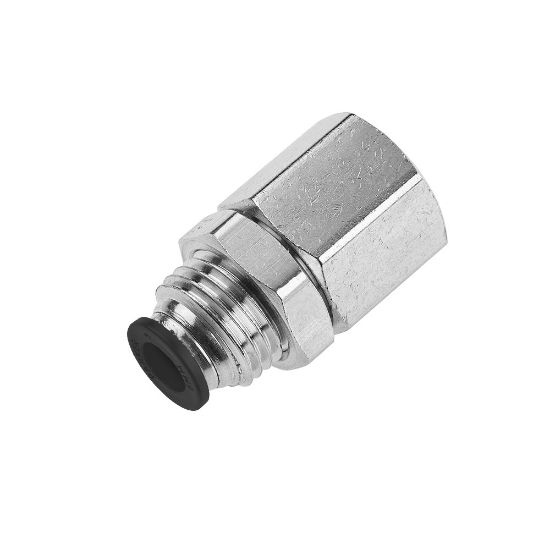

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLPBH-6-6

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.
Availability:
14 in stock
Kansas City, KS10
Springfield, MO4
SKU 66PLPBH-6-6
$15.22
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Size3/8"
Connection 2 Size3/8"Connection 1 TypePush-to-Connect
ConfigurationTube to Female PipeConnection 2 TypeFemale NPTF
Product StyleBulkheadBrandPARKER
DivisionFluid System Connectors DivisionDivisionFluid System Connectors Division
Hex Size1 inchSeal MaterialNitrile
Vacuum Pressure Rating28 Inch-HgMinimum Operating Temperature0 °F
ApplicationVacuumTechnologyPneumatics
For Fluid TypeAirSpecifications MetUL 94 V-0
IndustrySemiconductorMaterials of ConstructionPVDF (Button)
Body MaterialBrass, Nickel-platedMaximum Operating Pressure20.6 bar
Region of OriginUnited StatesGripping Ring MaterialStainless Steel
Maximum Operating Temperature93.3 °CTube MaterialPolyethylene
Dimensional Weight0.2179 lb
