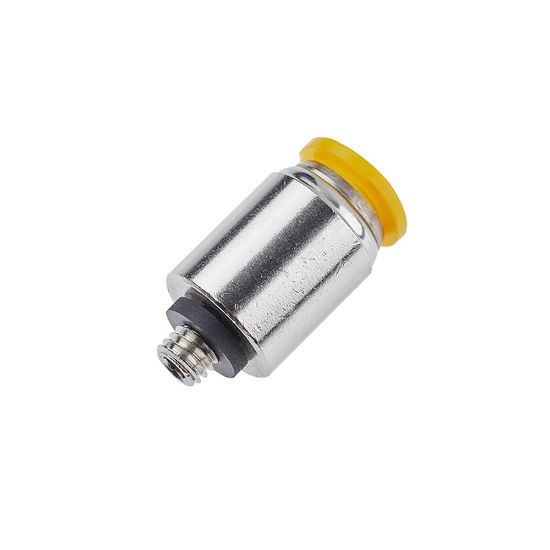

68PLPR-4M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 68PLPR-4M-2G

$9.41/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male BSPP
Product Style	Round Body Connector	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Oil
Maximum Operating Pressure	300 psi	Industry	Industrial Manufacturing Equipment
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	Tube Material	Nylon
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	93.3 °C	Minimum Operating Temperature	-17.7 °C
Hex Size	3.07 inch
